    Gryphon GH35 Handheld Thermal

    Product description

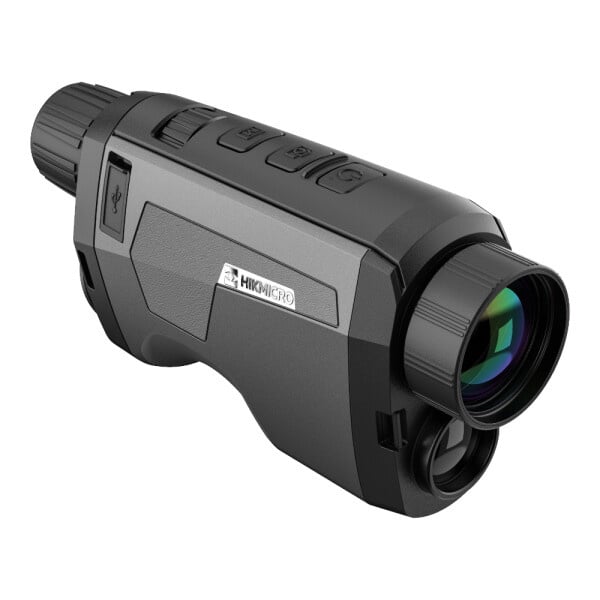

    Hikmicro Gryphon GH35 Handheld Thermal
    HIKTS23-35QG/WV-GH35

    Hikmicro Gryphon GH35 Handheld Thermal observation camera with VOx 640x512, 12µm35mm lens focusable, NETD< 35mk, 1/2” Progressive Scan CMOS 1960x1200 for Image Fusion:Thermal & Visible, OLED 1024x768, Stream in max resolution at 50fps, 2x 4x 8x digital zoom

    Outstanding Image Algorithm
    Self-developed image algorithm optimizes image quality, bringing users a high-definition and cleaner picture, highlighting the edge of the object.

    Advanced Technology
    1. New Way to Control
    The wheel is used for menu selection and zooming, making the operation more natural. Each rotation delivers an excellent sense of control to users.

    2. Advanced VOx 12µm Imaging Sensor
    The powerful VOx 12µm imaging sensor with NETD<35mK ensure the perfect distinction of the target and present clear and detailed pictures even in complete darkness.

    3. Built-in Laser Rangefinder, Accurately Measure the Distance
    The integrated laser rangefinder allows to determine the distance in various scenarios, which plays an important role in precision shooting.

    4. Replaceable Battery
    Two batteries and a HIKMICRO external battery charger are included in the package box, which gives the freedom to observe as long as needed even a full day.



    Thermal Module GH35
    Image Sensor VOx Uncooled Focal Plane Arrays
    Max. Resolution 384 × 288
    Frame Rate 50 Hz
    Pixel Interval 12 μm
    Response Waveband 8 μm to 14 μm
    NETD ＜35 mK(@25°C,F#=1.0)
    Lens (Focal Length) 35 mm
    Detection Range 1800 m
    Focus Mode Manual
    Field of View 7.5° × 5.7° (H × V)
    Min. Focusing Distance 3 m
    Aperture F1.0
    Magnification 3.35
    Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×

    Optical Module
    Image Sensor 1/2” Progressive Scan CMOS
    Max. Resolution 1920 × 1080
    Min. Illumination 0.001 Lux @ F1.0
    Focal Length 22 mm
    Wavelength 400 nm to 1000 nm

    Image Display
    Frame Frequency 50 Hz
    Display 0.39 inch, OLED, 1024 × 768
    FFC (Flat Field Correction) Mode Auto, Manual, External Correction
    Image Mode White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion

    General
    Protection Level IP67
    Weight 480 g
    Dimension 87.2 mm × 51.2 mm × 167.8 mm
    Working Temperature -30 to 55℃
    Eye-Relief 19.5 mm

    Smart Function
    Hot Track Yes
    Distance Measurement Yes
    Standby Mode Yes
    Hot Spot Yes

    System
    Built-in Memory 16 GB
    Record Video Yes
    Capture Snapshot Yes

    Power Supply
    Power Removable Battery
    Battery Type One 18650 battery
    Battery Operating Time 5 hours

    Specifications

    Article number
    TS23-35QG/WV
    EAN
    6974004640842
