    Lynx Pro LE15 Handheld Thermal Observation Camera

    Product description

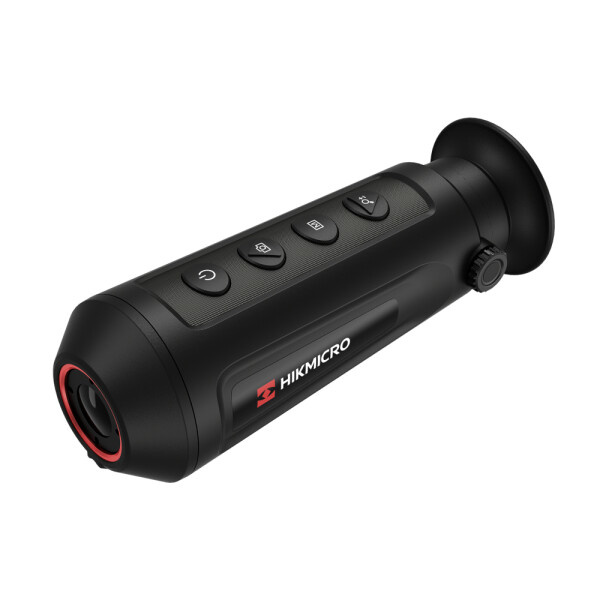

    Hikmicro Lynx Pro LE15 Handheld Thermal Observation Camera
    HIKHM-TS02-15XG/W-LE

    Compact Size, Easy to Carry
    Light Weight Design of 310 g/0.68 lb only.

    Advanced VOx 12 μm Imaging Sensor
    LYNX PRO series carries the new VOx 256×192/ 384×288 12 μm sensor (less than 35 mK), and large aperture lens, which gives a clear picture of the target even in complete darkness.

    Long Detection Range
    With the advanced imaging sensor and lens, detection range of a 1.7 m target can reach up to 1200m.

    Video and Snapshot
    Onboard 8 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.

    Hotspot for Mobile App
    Integrated hotspot module makes Sight app as a second display. Users can use digital zoom, video recording and other features on their phones.

    Thermal Module LE15
    Image Sensor VOx Uncooled Focal Plane Arrays
    Max. Resolution 256 × 192
    Pixel Interval 12μm
    Response Waveband 8μm to 14μm
    NETD Less than 35 mK (@25°C),F#=1.0
    Lens (Focal Length) 15mm
    Detection Range 750m
    Field of View 11.69° × 8.78° (H × V)°
    Aperture F1.0
    Magnification 1.42 to 11.36
    Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×

    Image Display

    Display 0.2 inch, LCOS, 720 × 540
    FFC (Flat Field Correction) Mode Auto, Manual, External Correction
    Palletes White Hot, Black Hot, Red Hot, Fusion

    General
    Power Consumption 1.5W
    Protection Level IP67
    Weight 280 g (0.62 lb)
    Dimension 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
    Hardware InterfaceType-C Interface
    Work Temperature/Humidity-20 °C to 55 °C (-4 °F to 131 °F)
    Power 5 VDC/2 A

    Smart Function
    Hotspot Yes
    Hot Track Yes
    Standby Mode Yes

    System
    Record Video Yes
    Capture Snapshot Yes
    Storage Built-in memory module (8 GB)

    Power Supply
    Power Lithium Battery
    Battery Operating Time 8 hours continuous running with hotspot function off (@25°C) 6 hours continuous running with hotspot function on (@25°C)
    Battery Capacity Display Yes

    Specifications

    Article number
    HM-TS02-15XG/W
    EAN
    6974004640286
