    Owl OH25 Handheld Thermal Observation Camera

    Product description

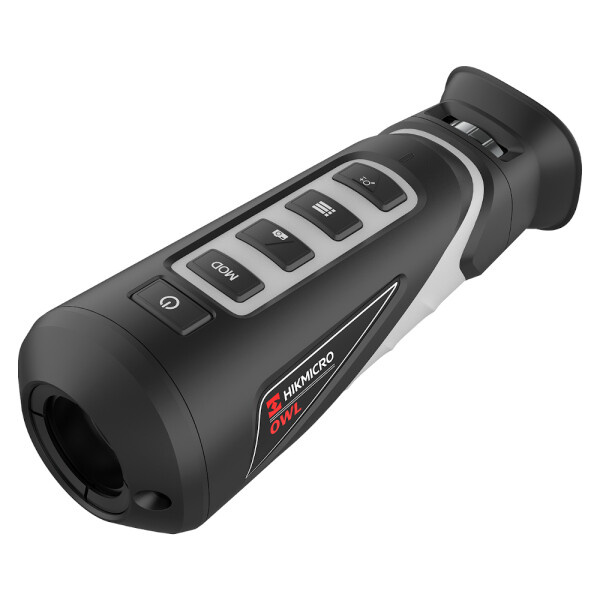

    Hikmicro Owl OH25 Handheld Thermal Observation Camera
    HIKDS-2TS03-25XF/W

    Hikmicro Owl OH25 Handheld Thermal observation camera. 640x512 pixels, VOx UFPA, 35mm lens, Pixel pitch 17 µm, NETD< 35mk, Stream in max resolution at 50fps, 2x 4x digital zoom. N/ASupport WiFi, Build in 16G memory module, Support 0.39'' 1024*768 OLED screen

    High Image Quality
    An NETD <35 mk thermal sensor and large aperture F1.0 lens provide contrasted, sharp and clear image. High resolution up to 640 x 512 can provide wide field of view.

    Long Detection Range
    With high-sensitivity sensor and long-focus objective lens, OWL series can detect 1.8 m target at a distance up to 1300m.

    Wide Operating Temperature Range
    With advanced OLED and structure design, OWL series can work in a low temperature of -30 degrees.

    Video and Snapshot
    Onboard 16 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.

    Hotspot for Mobile App
    Integrated hotspot module makes Sight app as a second display. Users can use digital zoom, video recording and other features on their phones.

    Thermal Module OH25
    Image Sensor VOx Uncooled Focal Plane Arrays
    Frame Rate 50 Hz
    Pixel Interval 17 μm
    Response Waveband 8 μm to 14 μm
    NETD Less than 35 mK (@25°C),F#=1.1)
    Detection Range 900 m
    Field of View 14.88° × 11.19° (H × V)
    Aperture F1.0
    Magnification 1.7 - 13.6
    Focal Length 25mm
    Resolution 384×288

    Image Display
    Digital Zoom 1 ×, 2 ×, 4 ×，8x
    Monitor 0.39 inch, OLED, 1024 × 768
    FFC (Flat Field Correction) Mode Auto, Manual, External Correction
    Palletes White Hot, Black Hot, Red Hot, Fusion

    General
    Power Consumption 1.5W
    Protection Level IP67
    Drop Test Height 2 m (6.56 feet)
    Weight 460 g (1.01 lb)
    Dimension 189 mm × 73.7 mm × 66 mm (7.44" × 2.90" × 2.60")
    Mounting UNC 1/4' - 20
    Hardware Interface Type-C USB
    Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
    Power 5 VDC/2 A

    Smart Function
    Hot Track Yes

    System
    Record Video Yes
    Capture Snapshot No
    Hotspot Yes
    Standby Mode Yes
    Storage Built-in memory module (16 GB)

    Power Supply
    Power Rechargeable Lithium Battery
    Battery Operating Time7 hours continuous running with hotspot function off (@25°C) 5.5 hours continuous running with hotspot function on (@25°C)
    Battery Capacity Display Yes


    Specifications

    Article number
    DS-2TS03-25XF/W
    EAN
    6974004640019

    Reviews

    0 from 5Based on 0 reviews
    Create your own review

    There are no reviews written yet about this product..

    Owl OH25 Handheld Thermal Observation Camera
    € 1.785,-
    Owl OH25 Handheld Thermal Observation Camera
    In stock
    Add to cart
